If your Skytech Archangel is stuttering, dropping frames, running hot, or showing suspiciously high ping, the fix usually comes down to three things: identify the exact hardware inside your model, remove Windows and driver bottlenecks, then use a sensible FPS cap instead of blindly chasing maximum frames. Archangel systems ship with different Ryzen processors and GeForce or Radeon GPUs, so the right settings for an RTX 4060 model won't necessarily suit a GTX 1660 Super or RX 6600 version.
That variation matters. Skytech has sold Archangel configurations built around chips such as the Ryzen 5 3600, Ryzen 5 5600, Ryzen 5 7600, and GPUs including the GTX 1660 Super, RTX 3060, RTX 4060, and Radeon RX 6600. Before changing anything, press Ctrl + Shift + Esc, open the Performance tab, and write down your CPU, GPU, RAM amount, drive type, and current memory speed. You can also verify the prebuilt's product details on the official Skytech website. Treat the steps below as a tuning path, not a one-size-fits-all preset.
Start With the Hardware and Temperature Check
A surprising number of “bad FPS” complaints are actually hardware-identification or cooling problems. The Archangel case may look the same across several generations, while the performance inside is completely different. Open Task Manager while a game is running and watch CPU, GPU, memory, disk, and Ethernet usage. For deeper readings, GPU-Z, HWiNFO64, or AMD Software can show clock speeds and temperatures in real time.
What numbers should you look for?
During a demanding game, a healthy dedicated GPU normally sits between roughly 90 and 100 percent usage when it is the performance limit. That is good news: the graphics card is doing its job. CPU usage can vary by game, but a single core pinned near 100 percent while the GPU sits far below full load points toward a processor limit, background software, an aggressive frame cap, or a CPU-heavy game setting such as simulation distance.
Temperature is more revealing than the average FPS counter. A Ryzen 5 5600 or 7600 may boost aggressively into the 70–85°C range under gaming load, while brief spikes can be higher. Most modern Ryzen chips protect themselves before damage occurs, but sustained temperatures near the platform's thermal limit can reduce boost behavior and create uneven frame pacing. For the GPU, sustained temperatures in the 65–82°C range are generally comfortable; repeated thermal throttling, sudden fan surges, or a core clock that collapses during a match deserves attention.
| Symptom | Likely Cause | First Test | Practical Fix |
|---|---|---|---|
| Low GPU usage and low FPS | CPU limit, background task, or wrong display output | Check CPU core load and monitor cable | Close overlays, use the GPU ports, reduce CPU-heavy settings |
| FPS starts high, then falls | Heat buildup or power plan issue | Log GPU temperature and clock speed | Clean filters, improve airflow, select Best Performance |
| Short freezes every few seconds | Shader compilation, drive activity, or overlays | Watch Disk and RAM usage | Allow shader cache to build, disable overlays, keep storage free |
| Random shutdowns or black screens | Power, cable, driver, or overheating fault | Check Event Viewer and GPU power cables | Clean-install drivers and contact Skytech if hardware is suspect |
Also check the cable. Your monitor should be connected to the graphics card's HDMI or DisplayPort outputs, not the motherboard's video ports, unless your particular system is intentionally using integrated graphics. This one mistake can leave a perfectly capable Archangel performing like an office PC. If you are diagnosing crashes as well as frame drops, our Elex PC crash and FPS fixes cover several useful Windows and driver checks that apply here too.
The Best Skytech Archangel Graphics Profiles
Don't begin by setting every option to Ultra. The Archangel's sweet spot is usually a high-refresh 1080p profile for entry and midrange GPUs, or a balanced 1440p profile for RTX 3060, RTX 4060, and stronger cards. Start with a clean baseline: native monitor resolution, fullscreen or exclusive fullscreen where available, 100 percent render scale, motion blur off, and a frame cap matched to your display.
For competitive games such as Counter-Strike 2, Valorant, Fortnite, Apex Legends, or Call of Duty, clarity and frame consistency beat cinematic shadows. For single-player games, you can spend some of that performance budget on textures, ambient occlusion, and reflections. Texture quality is primarily limited by VRAM, so an 8GB RTX 4060 or RX 6600 can usually handle High textures at 1080p, while heavy ray tracing is a separate and much more expensive workload.
| Setting | Competitive Profile | Balanced Profile | FPS and Visual Impact |
|---|---|---|---|
| Resolution | 1920×1080 | Native monitor resolution | Major impact; avoid unnecessary upscaling |
| Render scale | 90–100% | 100% | Lower scale raises FPS but softens edges |
| Textures | High | High or Ultra | Small FPS cost until VRAM fills |
| Shadows | Low or Medium | Medium or High | Often a large CPU and GPU cost |
| Volumetrics and fog | Low | Medium | Expensive in outdoor scenes |
| Reflections | Low | Medium | Can cause sharp dips near water and glass |
| Ray tracing | Off | Off or Low | Huge cost; use DLSS or FSR if enabled |
| Motion blur | Off | Off | Doesn't improve latency and reduces clarity |
| Upscaling | Off at 1080p, Quality if needed | DLSS or FSR Quality at 1440p | Useful when GPU-limited; Quality preserves detail |
Use NVIDIA Reflex when a game supports it, preferably with the “Enabled + Boost” option only if your GPU is not maintaining high clocks. Reflex reduces the render queue and can improve click-to-photon response, but Boost uses more power and may add heat. On AMD hardware, Radeon Anti-Lag can help in supported titles. Do not stack every latency feature blindly; game-level Reflex, driver Low Latency Mode, and third-party frame tools can conflict or produce inconsistent behavior.
For more specific graphics tuning, compare this approach with our Far Cry 6 maximum-FPS settings guide and the Filament higher-FPS settings breakdown. The games differ, but the same rule holds: lower shadows, volumetrics, reflections, and ray tracing before sacrificing textures.
Fix Stutter, Low 1% FPS, and Micro-Freezes
Average FPS can look excellent while the game still feels awful. That is a frame-pacing problem. The 1% low figure represents the slower frames that make camera movement feel uneven, especially when turning quickly or entering a new area. A stable 90 FPS often feels better than a fluctuating 130 FPS that repeatedly falls to 45.
Use a deliberate FPS cap
If you have a 60Hz screen, cap at 60 FPS or 58–59 FPS with a compatible limiter. For 144Hz, try 141 or 142 FPS; for 165Hz, use 162 or 163 FPS. The tiny buffer keeps the renderer below the display's ceiling and gives Adaptive-Sync or FreeSync room to work. If your GPU cannot hold the target, cap lower at a number it can sustain, such as 120, 100, or 90.
Use the game's own limiter first because it usually understands the engine's frame queue. RTSS is a strong fallback when the built-in limiter produces spikes, but don't run multiple limiters at once. V-Sync can eliminate tearing but may increase latency. With G-SYNC or FreeSync, a common smooth setup is variable refresh enabled, V-Sync enabled in the driver, V-Sync disabled in-game, and an FPS cap several frames below the panel's refresh rate. Test this rather than assuming it will feel identical on every monitor.
Remove the usual stutter sources
- Turn off Discord, Steam, Xbox Game Bar, GeForce Experience, and Radeon recording overlays one at a time. Overlay hooks can cause hitching even when their menus are closed.
- Keep at least 15 percent free space on the SSD. A nearly full drive has less room for shader caches, temporary files, and Windows maintenance.
- Install the game on an SSD whenever possible. A hard drive can turn asset streaming into visible pauses.
- Let a new game finish shader compilation. Interrupting it repeatedly can force the same work during gameplay.
- Use 16GB of RAM as a practical floor for modern gaming and 32GB if you multitask, use mods, or play large open-world titles.
- Disable browser tabs, launchers, RGB utilities, and motherboard monitoring tools you don't need during a competitive session.
Windows 11's Game Mode can stay enabled, but Hardware-Accelerated GPU Scheduling is worth testing rather than treating as a guaranteed upgrade. It helps some systems and worsens frame pacing on others. Change one option, reboot, and test the same map or benchmark for ten minutes. That controlled approach beats changing twelve settings and having no idea which one helped.
Lower Input Latency Without Breaking Image Quality
Latency is not the same as ping. Network ping measures the trip to a server; input latency includes mouse scanning, game processing, rendering, display scanout, and sometimes queueing caused by an uncapped GPU. A Skytech Archangel can show 20ms ping and still feel sluggish if the GPU is pinned at 99 percent with a huge render queue.

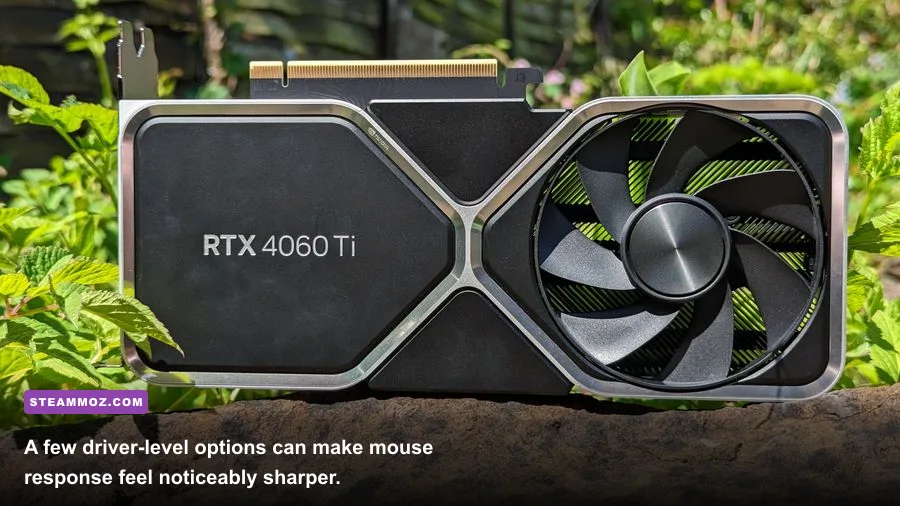

Driver settings for GeForce models
Open NVIDIA Control Panel and create a profile for the game rather than changing every title globally. Set Power management mode to “Prefer maximum performance” only for demanding games that downclock or stutter. Set Low Latency Mode to Off when the game supports NVIDIA Reflex; use On or Ultra for games without Reflex, then compare frame pacing. Set preferred refresh rate to the highest available and make sure Windows is also running the monitor at 144Hz, 165Hz, or its advertised maximum.
In GeForce Experience or the NVIDIA App, avoid automatic optimization if you already have a carefully tuned profile. It may raise resolution, enable ray tracing, or remove your frame cap. Update drivers from the official NVIDIA driver page, and use a clean installation when a new driver causes crashes or flickering. A normal update is fine for routine maintenance; use Display Driver Uninstaller only when ordinary reinstalling fails.
Driver settings for Radeon models
In AMD Software: Adrenalin Edition, set the display to its maximum refresh rate, enable FreeSync if your monitor supports it, and use Radeon Anti-Lag in the game's profile when appropriate. Avoid enabling Radeon Chill if your priority is the lowest possible latency; its dynamic frame behavior can be useful for power savings but may make competitive games feel inconsistent. Enhanced Sync can reduce tearing, but test it against ordinary V-Sync because behavior varies by game engine.
For both brands, disable image sharpening if it creates halos, and don't enable “maximum performance” globally. A desktop GPU running hot all day for no benefit is wasted power and extra fan noise. If you are seeing strange artifacts, flickering, or driver timeouts, return the profile to defaults before adding features back.
Fix High Ping, Packet Loss, and Wi-Fi Spikes
A graphics upgrade won't cure a bad connection. First separate local latency from server latency. Open Command Prompt and run ping -t 192.168.1.1, replacing the address with your router's gateway if necessary. If this local test jumps from 1–5ms to hundreds of milliseconds, the problem is inside your home: Wi-Fi interference, router congestion, a weak adapter signal, or bufferbloat. If the local test is stable but the game is high-ping, the issue is more likely your ISP route, server region, or the game itself.
The connection order that actually works
- Connect the Archangel to the router with Cat5e or better Ethernet. A wired link removes most wireless interference and is the best first test.
- If Wi-Fi is unavoidable, use 5GHz or 6GHz, move the PC or access point away from metal and walls, and install the latest motherboard or adapter driver.
- Pause cloud sync, game downloads, Windows updates, streaming uploads, and phone backups. Upload saturation is particularly bad for bufferbloat.
- Choose the nearest in-game server region. “Automatic” can occasionally select a distant or overloaded route.
- Restart the router, then test at a quiet time and during peak evening hours. A consistent evening spike points toward ISP congestion.
Don't confuse packet loss with ordinary ping. A stable 70ms connection can play better than a 25ms connection losing five percent of packets. Use the game's network graph if it provides one, and watch for loss, choke, jitter, or latency variation. Router Quality of Service can help when someone else is streaming or uploading, but poorly configured QoS can reduce throughput. Apply it only after confirming that congestion is the cause.
Our EscapeVR crashing and low-FPS fixes and Everspace 2 FPS-first troubleshooting guide also cover the useful distinction between game performance problems and system-level faults. That distinction saves a lot of pointless router resets.
Safe BIOS, Windows, and Maintenance Tweaks
Start with the boring fixes before touching overclocking. Install Windows updates, motherboard chipset drivers, LAN drivers, and the correct GPU driver. AMD recommends current chipset software for Ryzen power-management behavior; download it from the official AMD support page. For Windows configuration, Microsoft's official support library is safer than random registry scripts.
In Windows Settings, set the monitor to its highest refresh rate under System, Display, Advanced display. Set Power mode to Best performance while gaming if your system is plugged into a stable mains supply. Leave the page file system-managed unless you have a specific reason to change it. Manually disabling virtual memory can cause crashes in games that consume more than 16GB of RAM.
Open the case only with the PC powered off and unplugged. Dust the front filter, rear exhaust, CPU cooler, and GPU fans with compressed air while preventing the fans from spinning freely. Confirm that front fans pull air in and rear or top fans exhaust it. Never block the front panel with a wall or pile of cables. If the Archangel is still overheating, reseating a cooler or replacing thermal paste may help, but doing so can affect warranty coverage; contact Skytech support before disassembling major components on a covered system.
| Tuning Area | Safe Starting Value | What to Monitor | When to Back Off |
|---|---|---|---|
| FPS cap | Refresh rate minus 2–3 FPS | Frame time and 1% lows | Input feels delayed or pacing worsens |
| GPU power profile | Game-specific maximum performance | Clock, temperature, fan noise | Heat rises without a performance gain |
| Upscaling | DLSS or FSR Quality | Ghosting and edge clarity | Fine detail shimmers or looks soft |
| Memory profile | EXPO or XMP at rated speed | Boot stability and game crashes | Blue screens, failed boots, or errors |
| CPU/GPU overclock | Leave stock initially | Temperatures and stress-test errors | Any crash, artifact, or clock instability |
EXPO on AMD platforms and XMP on Intel platforms can improve CPU-limited FPS by running RAM at its advertised speed, but it isn't risk-free. Enable it in BIOS only after confirming the memory kit's rated profile, then test with a real game and a memory test. If the system begins rebooting, disable the profile and update the BIOS rather than forcing higher voltage. Skytech's exact motherboard changes by configuration, so use the board manual instead of guessing menu names.
Finally, benchmark consistently. Pick one repeatable game scene, record average FPS, 1% lows, GPU temperature, CPU temperature, and ping, then change one variable. The best Skytech Archangel setup isn't the one with the most aggressive slider positions. It's the one that holds a stable frame time, keeps temperatures under control, and responds instantly when you move the mouse.
